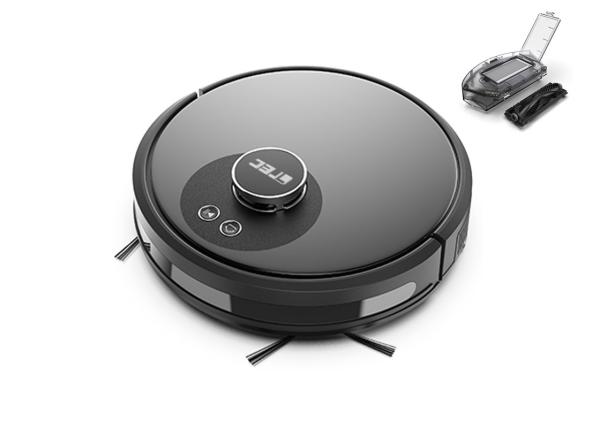

The newest Laser Navigation Robot Vacuum With Mapping, Room
Real-time Mapping Robot Vacuum
Feature:
-- The laser navigation system can rapidly detect and identify the
surrounding environment automatically and draw accurate 2D maps in
real time to ensure cleaning without omission.
-- Different rooms are independently planned for partitioned and
upgraded cleaning. In the cleaning process, the cleaning path is
intelligently planned in real time to improve the cleaning
efficiency.
-- Remote APP intelligent control, visual cleaning; commands can be
sent anytime, from anywhere. Forbidden zones and cleanable zones
can be set at any time, and the cleaning track can be viewed in
real time. It is easy to operate.
-- Laser radar navigation, indoor mapping and localization, path
planning, real-time map, WIFI connected app, brushless fan.
Spec:
| Detailed parameters | Brand Model | TV-01 |
| Release Date | 2019 |
| Size | 35*10.07 cm |
| Color | Purple |
| Dust box volume | 600ML |
| Water Tank | 450ML |
| Filter | Primary fillter+HEPA filter |
| Motor | Brushless motor |
| Cleaning Modes | 5 Cleaning modes,zigzag plan |
| Advanced feature | SLAM caculation,Voice prompt |
| suction Nozzle | V-Shape Rolling Brush&Suction |
| | |
| Working Parameters | Battery | 3200mAH |
| Working time | About 120min |
| Scope of work | 150-200 square meters |
| Charging time | 4-5 hours |
| Working noise | ≤58dB |
| Suction stength | 1800Pa |
| | |
| other functions | Cleaning Route | Planned Type |
| Automatic Recharge | Yes |
| Timing Reservation | Yes |
| Remote Control | Yes |
| Memory environment | Yes |
| Air filtration | Yes |
| Anti Collision | Yes |
| Anti Falling | Yes |
| Wet mop | Yes |
| LCD | NO |
| Gyroscope | Yes |
| Type | Laser Robotic Vacuum Cleaner |
| Function | Sweep / Vacuum / Mop |
| Auto Recharger | Yes |
| Dimension(DxH) | 35 x 10.07CM |
| Battery | 3200MAH |
| Working Time | 120Mins |
| Suction | 1800Pa, 22000RPM/MIN |
| Barrier Height / Climbing Height | 2CM / 25° |
| Noise | Extremely low Noise 58DB |
| Dust Bin Capacity | 600ML |
| Remote | APP control |
| Fan Motor | NIDEC No-brush motor |
| Certificate |
CE / ROHS / FCC / UL
|
Are you a factory or trading company?
We are the biggest wet & dry vacuum cleaner factory in Shenzhen.
What certificates do you have for your products?
We have UL, CE, RoHs certificates;
Do you accept order through OEM/ODM business?
Yes, it is including the customer logo & customer package printing
design, but need annual buying quantity 5000pcs and each order MOQ
500pcs;
What's your Minimum Order Quantity?
Normally 500pcs for ODM, small quantity is also available.
Do you accept sample order?
Sample usually 3-5 days after payment received.
How long is the vacuum cleaner working time at normal full battery
capacity?
It depend on different ground, wood floor, tile, marble ground
about 120 -160 minutes, short woollen carpet about 90 -120 minutes.
Can the machine clean the beneath of the furniture?
The machine can clean the beneath of the table, bed, other
furniture which feet higher than 10 cm.
Hong long is the battery's life?
Normally the battery capacity will no loss within 1000 times
recharge. The capacity will loss after
1000 times recharge but no influence to use.
How big area will be clean under auto cleaning mode?
About 120 -150 square meters.
What it will do when machine meet a obstacle?
Normally machine will turn back to schedule other cleaning route
when meet a obstacle.
Why the machine drop out rubbish when it is working?
please check if the dustbin is full and clean the dustbin in time.
please check if the main brush bind too much hair and to clean main
brush.
About Delivery:
What's your lead-time and payment term?
Normally, our lead-time is 25-45 days, it depends your order
quantity and request.
Sample: PayPal or T/T
Mass production: 30% deposit advanced, 70% before shipment.
